A Comparative Guide Gate Valves vs Butterfly Valves

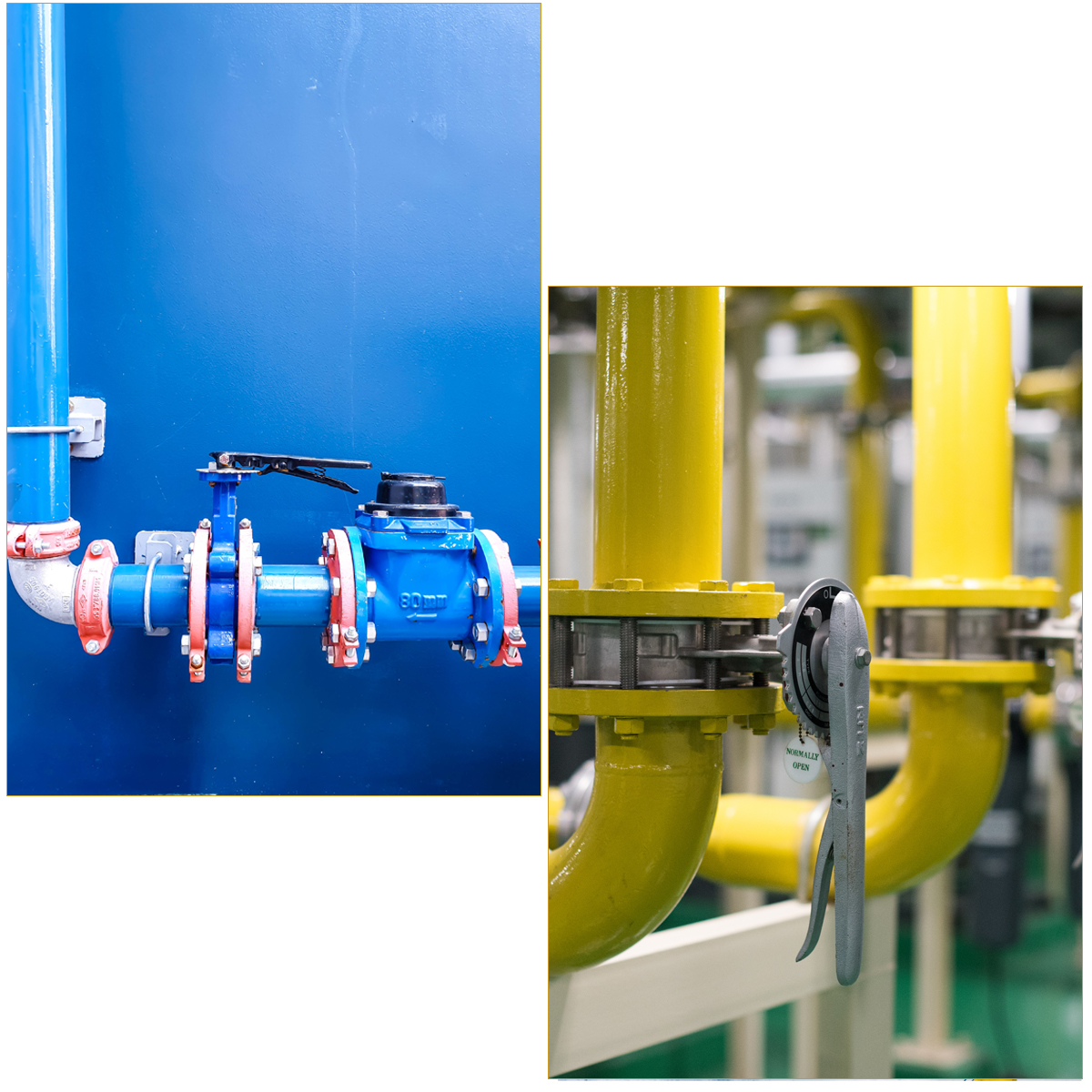

A collage image of butterfly valves in industries.

In the realm of industry, picking the right valve for your systems is a critical decision. You will come across gate and butterfly valves, each with unique features and suited for different uses. This guide dives into their workings and assesses their pros and cons. As an expert, you will gain insights to ensure your chosen valves meet your project-specific needs. Let us delve into a thorough comparison.

Exploring Gate Valve Design and Functionality

Are you unsure whether to contact your butterfly valve supplier or your gate valve supplier? In industrial setups where fluid control is key, gate valves shine with their simple yet effective design. These components are essential for systems that regulate liquid movement.

These valves work by moving a flat barrier up or down, stopping or allowing liquid to pass. They are not for flow control but for full stops or releases. Why? A partially open gate valve can be damaged by fast-moving fluid hitting the gate, causing wear and breakdown.

Gate valves have a "full port" design. the opening is as wide as the connected pipe. This keeps pressure steady and makes cleaning easy with tools like cleaning pigs. This feature is great for systems that need constant pressure.

Their simple design makes them popular in applications where a minimal pressure drop is preferred, especially with big pipes. They come in various materials, sizes, pressure ratings, temperature capabilities, and styles to match diverse industrial needs.

When picking a gate valve, remember that it is made for simple operation and ease of use in the right environments. With various choices, you will find one that fits your system, whether for high-pressure situations or valves that need regular handling.

Gate Valve Operating Mechanisms and Varieties

Operating gate valves offer several choices, each with benefits. Here are some mechanisms and designs you might see:

  • Pneumatic actuation uses air power.
  • Electric actuation works with electricity to move the gate.
  • The wedge disc gate valve has a wedge-shaped gate.
  • The knife disc gate cuts through thick liquids and solids.
  • The double disc gate has two separate barriers.
  • Screwed bonnets are common in small valves.
  • Bolted bonnets fit larger valves under high pressure.
  • Welded bonnets prevent leaks.
  • Pressure-sealed bonnets strengthen the seal with more internal pressure.

Each gate valve type is best for high-pressure systems or places needing regular valve use. Your choice will hinge on factors like pressure resistance, operation frequency, and space for installation and upkeep.

Choosing Materials for Gate Valve Durability

Material selection for gate valves should consider the fluid and temperature they will face. The right materials ensure the valve’s longevity and peak performance. Sturdy materials like stainless steel or bronze are key in corrosive settings like saltwater.

Gate valve parts often use these materials:

  • Disc- Stainless steel or with polypropylene or Teflon lining for chemical resistance.
  • Seal- Typically EPDM or NBR for toughness, with Teflon for chemical resistance and low friction.

Selecting suitable materials for each part means your gate valve can handle various conditions for long-lasting performance. Now that we have covered gate valve materials, It is time to look at butterfly valves and their unique features for different industrial needs.

Understanding Butterfly Valve Design and Use

Choosing the right industrial valve is crucial. Butterfly valves are known for their compact build and quick use. Unlike gate valves that move straight, butterfly valves turn to adjust the flow rate by partially closing their disc.

Butterfly valves are versatile, fitting a range of uses. They are good for water systems, isolation at pump stations, and high-pressure, high-temperature settings.

Consider their different offset designs, such as zero, double, and triple, when considering butterfly valves for your projects. These affect how the valve performs and lasts. Each design fits certain operations, making sure your system runs smoothly.

Butterfly Valve Types and Offset Design Choices

Understanding butterfly valve types and offset designs is important when choosing one for your industrial tasks. Here is a look at the different types and how their designs affect their work:

  • Zero Offset Butterfly Valves have a centred disc.
  • Double Offset Butterfly Valves seal better and last longer.
  • Triple Offset Butterfly Valves are for the toughest jobs.
  • Wafer Butterfly Valves fit between two pipe flanges.
  • Lug Butterfly Valves have threads for easy setup.
  • Flanged Butterfly Valves have flanges on both sides.

As you weigh these options, remember the materials they are made of are just as crucial to ensure the valve works well in your industrial setting.

Selecting Materials for Butterfly Valve Performance

Choosing a butterfly valve means picking body and seat materials that fit your specific needs, especially regarding temperature and corrosion.

  • Stainless steel and carbon steel are common for butterfly valve bodies because they are strong and resist harsh conditions.
  • For the seat, EPDM and NBR are chosen for their resilience and versatility with different substances.

Consider the temperatures and pressures they will face when you think about these materials. This careful selection will ensure your valve performs well and lasts in your industrial processes.

Comparing Gate Valves and Butterfly Valves

Butterfly valves are usually more affordable and lighter, which helps with handling and setting up, especially in bigger sizes. They need less space for installation and work faster because of their quarter-turn design, which is important in some cases.

Gate valves, however, are better for high-pressure systems since they can handle more pressure. They are also good for systems that use pigging tools for maintenance because of their full port design. Although they are slower to use, their design creates a tight seal, making them perfect for jobs that can use their fully open or closed state.

Your final choice will depend on your operation's specific needs, like pressure requirements, space limits, and how often the valve is used. This comparison helps you see the unique benefits of each valve type and guides your decisions for the best system performance.

Also Read: An Essential Guide to Butterfly Valve Components

Applications Gate Valves vs Butterfly Valves

In industrial uses, gate valves are often picked for big pipe systems that need steady flow in both directions. In contrast, butterfly valves are chosen for quick action where fast opening and closing are needed. Gate valves are not often used, making them right for systems that stay open or closed for long. Each valve type has its role, ensuring you can pick the best one for your needs.

Pros and Cons of Gate and Butterfly Valves

When considering gate and butterfly valves for your systems, knowing their strengths and weaknesses is vital. Here is a quick guide to help you choose:

Gate valves

  • Handle high-pressure well.
  • Allow unrestricted flow when fully open.
  • Are not made for adjusting flow.
  • Can get scratched and worn out over time.

Butterfly valves

  • Have a compact build and quick use.
  • Can adjust flow.
  • May block flow because of the disc.
  • Can cause water hammers.

With these points in mind, you are better prepared to pick the valve that fits your industrial setting's needs, ensuring your system works well.

Informed Valve Selection for Optimal Performance

After learning about gate and butterfly valves, you now know their differences and strengths in industrial settings. Gate valves are unmatched for smooth flow in high-pressure systems, while butterfly valves stand out for fast operation and saving space.

As you fine-tune your valve choice, consider how these factors fit your unique requirements, ensuring your system runs without issues and lasts. If you need more help making these important decisions, get in touch with your industrial valve supplier in Russia to help you improve your systems with the right valve solutions.
