What is the Difference Between a Gate Valve and a Globe Valve?

Have you ever questioned the difference between a gate valve and a globe valve? This common query often pops up among valve manufacturers and buyers. This article offers a detailed technical comparison between these two types of valves, highlighting their design, functionality, and usual applications. You'll get a comparative analysis, equipping you to make knowledgeable decisions for your operations. Moreover, you'll gain beneficial insights to assist in choosing the correct valve that fits your specific needs. So, prepare for a clear and informative exploration of gate and globe valves.

Understanding the Basics: Gate Valves

When it comes to gate valves, grasping their design and functionality is crucial. You also become familiar with their typical uses and the reasons behind their selection in particular situations. This understanding prepares you for a detailed comparison with globe valves. Let's proceed to understand the design and functionality of gate valves.

Design and Functionality of Gate Valves

The gate valve, known for its unique rectangular or wedge-shaped body, is taller when opened than a globe valve. This valve operates in both directions, with a gate disc's movement determining its function. Specifically, the disc moves up to open the valve and down to close it, aligning perfectly with the seats.

The disc comes in various shapes, including:

• A wedge
• A knife
• A parallel form

However, to extend your gate valve's life, remember that it should always be either fully open or fully closed during operation. Most of the gate valve's internal components reside on top of the body. Also, the gate valve's design does not handle media pressure well when semi-open.

Understanding these design aspects is fundamental for the efficient use and maintenance of gate valves. This awareness helps us appreciate the various industrial applications where gate valves play a big role.

Common Applications of Gate Valves

Gate valves, known for their sturdy build and efficient operation, are widely used across numerous industries. Here's the breakdown:

• Oil and Gas Industry Gate valves are crucial to exploration, production, and refining processes. They control the flow of crude oil, natural gas, and petroleum products in pipelines, refineries, and storage tanks. Their design reduces the chance of sediment accumulation, making them suitable for operation at higher pressures, especially with slurry.
• Water Treatment Plants Gate valves are popular because they can quickly stop the liquid flow, reducing the risk of contamination.
• Power Generation Plants The design of gate valves, which allows for full-area flow, decreases pressure drop and enables the passage of a pipe-cleaning pig.
• Chemical and Pharmaceutical Industries Gate valves can handle high pressure and provide a secure enclosure for the valve mechanism.
• HVAC Systems They are primarily used for on-off services.
• Automotive and Food Industries Gate valves handle viscous liquids such as heavy oils, light grease, varnish, molasses, honey, cream, and other non-flammable viscous liquids efficiently.
• Marine Industry Ships and mud pumps for oil and gas drilling applications often use gate valves.

Flat gate valves with guide holes are useful for cleaning petroleum and natural gas delivery pipelines. Read our article “Exploring the Diverse Applications of Gate Valves” to learn more about the applications of gate valves.

When a situation calls for a tight seal, gate valves are usually the first choice, with the knife gate valve being applied in thicker and more viscous media. The adaptability and effectiveness of gate valves make them an essential component across various industries. At this juncture, it is vital to explore other valve options like the globe valve.

Understanding the Basics: Globe Valves

Grasping the fundamentals of globe valves is crucial to differentiate them from gate valves. This comprehension will allow you to value the distinct design and functionality of globe valves. Moreover, you'll acquire an understanding of their typical uses, preparing the groundwork for a thorough comparison. Let's begin.

Design and Functionality of Globe Valves

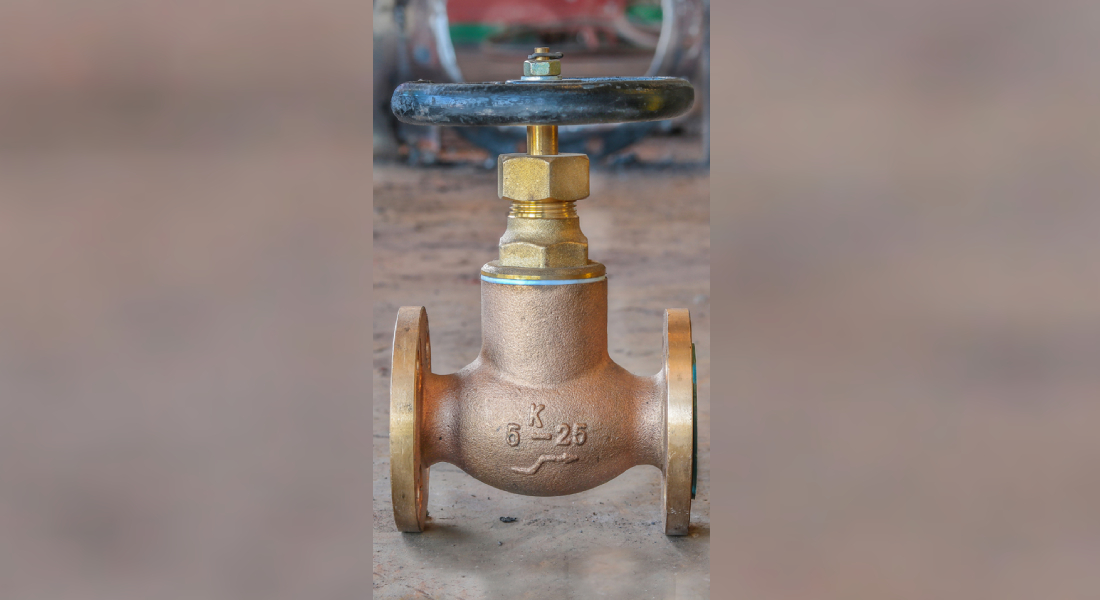

In contrast to gate valves, Globe valves exhibit a distinctively rounder body, especially at the bottom. The operation of a globe valve heavily relies on a disc that resembles a plug and controls the media flow. So, what differentiates a gate valve from a globe valve? The orientation of their seats marks a significant difference. Unlike the seats of a gate valve, the seats of a globe valve align with the media flow, resulting in less erosion during operation.

This design aspect positions globe valves as a superior choice for throttling. However, it's important to mention that their design induces a high drop in pressure. Despite this, they continue to be a preferred choice when pressure drop isn't a critical factor. Keeping these design and functional characteristics of globe valves in mind, let's understand why they often become the choice for certain applications, even with their high-pressure drop.

Common Applications of Globe Valves

Globe valves earn recognition for their distinct ability to control flow and pressure. They serve a variety of industries, each with unique challenges and requirements.

The sturdy design of globe valves is critical in the chemical processing industry. They endure high pressure and offer a safe enclosure for the valve mechanism.

In pharmaceutical and biotechnology, globe valves are useful for managing viscous liquids. These include heavy oils, light grease, varnish, molasses, honey, cream, and other non-flammable viscous liquids. The unique design and features of these valves make them suitable for handling these liquids. These liquids demand accurate control and a robust enclosure.

In turbines and boilers, globe valves serve extraction, drainage or sealing systems, and water or oil feed systems. These systems need precise control or the capacity to shut down for specific periods. This makes globe valves an excellent choice.

Here are some other notable uses of globe valves:

• Flow capacity measurement testing in new systems
• High-temperature or potentially hazardous industrial applications
• Cooling water systems and fuel oil systems, where they operate at higher temperatures and control flow

Now that we’ve set the stage let’s compare gate and globe valves.

Also Read: Understanding the Directional Flow in Globe Valves: An Essential Guide

Gate Valve vs Globe Valve: A Detailed Comparison

Understanding the complexities of gate and globe valves is vital in your decision-making process. This section will evaluate their design, functionality, and applications side by side. It will spotlight the differences and similarities between these two types of valves and the common use cases for each type. This information will arm you with the understanding to make a more informed choice. Let's proceed.

Comparing Design and Functionality

Gate valves have a simple design with a vertically rotating gate or wedge. This design allows for a straight flow path with minimal resistance or pressure drop. They work well for isolation purposes. However, they do not perform as well in flow control or throttling. Gate valves are more manageable and typically less expensive to maintain due to their fewer moving parts. Over time, though, they may not seal as effectively and may be prone to cavitation and flashing when partially opened. They also lack clear visual status indicators and take longer to open and close because of the gate's movement.

On the other hand, globe valves have a complex design with a vertically moving disc and a curved flow path. They are excellent for regulating or throttling flow and can be used for on/off service. But, if you're looking for minimal pressure drop, they may not be the best choice. Globe valves require more maintenance due to their many moving parts. Their intricate design and precise flow control abilities generally make them more expensive. They offer a clearer visual indication of their status and open and close in less time due to the disc or plug's smaller travel distance.

Now, let's focus on their key differences:

• Gate valves have a simpler construction, with most of its internal parts situated on the top part of the valve body.
• Many globe valve parts are inside the cavity, enabling flow direction and rate changes.
• Gate valves need less power to close under high pressure, are lighter, and slower to operate.
• Conversely, globe valves require a significant amount of force or an actuator to close under high pressure, are heavier, and operate faster.

After understanding the design and functionality of gate and globe valves, you might wonder how these differences affect their applications.

Comparing Applications

You may have observed that gate valves frequently appear in large pipelines, while globe valves dominate in precise flow control. This trend stems primarily from their distinct designs and functionalities.

People often select gate valves for scenarios that require bidirectional flow blocking. Their design promotes a complete, unobstructed fluid flow with minimal pressure drop. In contrast, globe valves, designed for precise control and regulation of flow, operate unidirectionally and perform effectively as flow throttlers. They are the go-to option for applications where unidirectional flow is required, and safety and leakage hold the utmost importance.

Grasping the difference between a gate valve and a globe valve is crucial as it can significantly impact your operation's efficiency. We will examine the factors that can assist you in choosing between gate and globe valves in the following section.

Choosing Between Gate and Globe Valves: Factors to Consider

When deciding between gate and globe valves, you need to take into account several factors:

• The nature of your application, including the fluid type, pressure, and temperature.
• The size of the valve, as it can influence its functionality and suitability for specific applications.
• Leakage control, with globe valves recognised for providing leakage-free solutions.
• The operational mechanisms of gate and globe valves, which can function mechanically, with air (pneumatically), or electricity.
• The pressure rating of the valve, as it can influence its installation and operation.
• The valve's weight can also affect its installation and operation.

A gate valve could be the best choice if your application involves slurry or other contaminated media. On the other hand, globe valves excel in applications that demand excellent sealing.

When sourcing your valves, search for a reliable globe valve supplier who can meet your specific application requirements. By understanding these factors, you can choose between a gate valve and a globe valve. Having covered the essential factors, let's move to the specifics of selecting the right valve for your application in the next section.

Deciding the Best Fit: Gate Valve or Globe Valve

You've studied the details of gate and globe valves, understanding their design, operation, and typical uses. The differences between the two have been clearly explained, giving you the knowledge to make informed decisions for your processes. Remember, the correct valve is essential to the efficiency of your system. Therefore, consider this data and choose the valve that meets your specific needs. And don't forget, when doubts surface, AlterValve, the industrial valve stockist, always has industry professionals ready to offer further guidance.
